Analysis
import pyfiber as pf
Configuration file at: C:Usersmceau/.pyfiber/pyfiber.yaml
s = pf.Session(fiber='../DATA/FIBER/AD21R_rat_2_SA_j23/AD21RSA1RAT215072021_0.csv',
behavior='../DATA/FIBER/AD21R_rat_2_SA_j23/bsa15072021c20_01.dat')
13:49:45 --- IMPORTING ../DATA/FIBER/AD21R_rat_2_SA_j23/bsa15072021c20_01.dat...
13:49:45 --- Detecting hled_on... ['conditional', [1, 1], ['_P', 1]])
13:49:45 --- Detecting hled_off... ['conditional', [1, 1], ['_P', 0]])
13:49:45 --- Detecting led1_on... ['conditional', [1, 2], ['_P', 1]])
13:49:45 --- Detecting led1_off... ['conditional', [1, 2], ['_P', 0]])
13:49:45 --- Detecting led2_on... ['conditional', [1, 3], ['_P', 1]])
13:49:45 --- Detecting led2_off... ['conditional', [1, 3], ['_P', 0]])
13:49:45 --- Detecting np1... ['conditional', [3, 1], ['_V', 1]])
13:49:45 --- Detecting np2... ['conditional', [3, 2], ['_V', 1]])
13:49:45 --- Detecting inj1... ['conditional', [6, 1], ['_L', 1]])
13:49:45 --- Detecting ttl1_on... ['conditional', [15, 1], ['_L', 1]])
13:49:45 --- Detecting ttl1_off... ['conditional', [15, 1], ['_L', 0]])
13:49:45 --- Detecting x_coordinates... ['simple', [9, 1], '_X'])
13:49:45 --- Detecting y_coordinates... ['simple', [9, 1], '_Y'])
13:49:45 --- Detecting xy_timestamps... ['simple', [9, 1], 'TIME'])
13:49:45 --- Detecting HLED... ['ON_OFF', 'both', ['hled_on', 'hled_off']])
13:49:45 --- Detecting LED1... ['ON_OFF', 'both', ['led1_on', 'led1_off']])
13:49:45 --- Detecting LED2... ['ON_OFF', 'both', ['led2_on', 'led2_off']])
13:49:45 --- Detecting TTL1... ['ON_OFF', 'both', ['ttl1_on', 'ttl1_off']])
13:49:45 --- Detecting rec_start... ['indexed', 'ttl1_on', 1])
13:49:45 --- Detecting DARK... ['INTERSECTION', ['HLED_OFF', 'LED1_OFF', 'LED2_OFF']])
13:49:45 --- Detecting DNI... ['NEAR_EVENT', 'DARK', 'inj1', 5])
13:49:45 --- Detecting TO_DARK... ['DURATION', 'DNI', '<', 45])
13:49:45 --- Detecting TIMEOUT... ['UNION', ['LED1_ON', 'TO_DARK']])
13:49:45 --- Detecting NOTO_DARK... ['INTERSECTION', ['DARK', '~TIMEOUT']])
13:49:45 --- Detecting noto_dark_end... ['boundary', 'end', 'NOTO_DARK'])
13:49:45 --- Detecting switch_dark_d1... ['iselement', 'noto_dark_end', 'LED2_ON'])
13:49:45 --- Detecting hled_on_start... ['boundary', 'start', 'HLED_ON'])
13:49:45 --- Detecting hled_on_end... ['boundary', 'end', 'HLED_ON'])
13:49:45 --- Detecting switch_d_nd... ['iselement', 'hled_on_start', 'LED2_ON'])
13:49:45 --- Detecting switch_to_nd... ['iselement', 'hled_on_start', 'TIMEOUT'])
13:49:45 --- Detecting switch_dto_nd... ['combination', ['switch_d_nd', 'switch_to_nd']])
13:49:45 --- Detecting switch_nd_d... ['iselement', 'hled_on_end', 'LED2_ON'])
13:49:45 --- Detecting switch_between... ['timerestricted', 'switch_dto_nd', [100, 3400]])
13:49:45 --- Detecting switch_1... ['indexed', 'switch_between', 1])
13:49:45 --- Detecting switch_between_D... ['timerestricted', 'switch_d_nd', [100, 3400]])
13:49:45 --- Detecting switch_1_D... ['indexed', 'switch_between_D', 1])
13:49:45 --- Detecting HLEDOFF_NODARK... ['INTERSECTION', ['HLED_OFF', '~NOTO_DARK']])
13:49:45 --- Detecting DRP... ['NEAR_EVENT', 'HLEDOFF_NODARK', 'led2_on', 1])
13:49:45 --- Detecting DRP_LONG... ['DURATION', 'DRP', '>', 600])
13:49:45 --- Detecting DRP_INJ... ['CONTAINS', 'DRP', 'inj1'])
13:49:45 --- Detecting DRUG... ['UNION', ['DRP_LONG', 'DRP_INJ']])
13:49:45 --- Detecting D_n... ['GENERATIVE', 'DRUG'])
13:49:45 --- Detecting DRUG_NOTO... ['INTERSECTION', ['DRUG', '~TIMEOUT']])
13:49:45 --- Detecting np_HF_NOTO... ['iselement', 'np1', 'DRUG_NOTO'])
13:49:45 --- Detecting np_effective... ['iselement', 'np_HF_NOTO', 'LED2_ON'])
13:49:45 --- Detecting np1_n... ['generative2', ['D_n', 'np_effective'], 5])
13:49:45 --- Detecting ND_n... ['GENERATIVE', 'HLED_ON'])
13:49:45 --- Detecting ND_first... ['NEAR_EVENT', 'HLED_ON', 'switch_1', 1])
13:49:45 --- Detecting switch_nd1... ['boundary', 'end', 'ND_first'])
13:49:45 --- Detecting inj_first... ['indexed', 'inj1', 1])
13:49:45 --- Detecting npt... ['combination', ['np1', 'np2']])
13:49:45 --- Detecting np1_ND_first... ['iselement', 'np1', 'ND_first'])
13:49:45 --- Detecting np2_ND_first... ['iselement', 'np2', 'ND_first'])
13:49:45 --- Detecting npt_ND_first... ['iselement', 'npt', 'ND_first'])
13:49:45 --- Detecting np1_NDfirst_1... ['indexed', 'np1_ND_first', 1])
13:49:45 --- Detecting np2_NDfirst_1... ['indexed', 'np2_ND_first', 1])
13:49:45 --- Detecting npt_NDfirst_1... ['indexed', 'npt_ND_first', 1])
13:49:45 --- Importing finished in 0.064 seconds
13:49:45 --- Importing ../DATA/FIBER/AD21R_rat_2_SA_j23/AD21RSA1RAT215072021_0.csv...
13:49:46 --- Found 4 separate recordings.
13:49:46 --- Analyzing peaks...
13:49:46 --- Normalizing recording 1 with method 'F'
13:49:46 --- Normalizing recording 2 with method 'F'
13:49:46 --- Normalizing recording 3 with method 'F'
13:49:46 --- Normalizing recording 4 with method 'F'
13:49:46 --- Importing of ../DATA/FIBER/AD21R_rat_2_SA_j23/AD21RSA1RAT215072021_0.csv finished in 1.1879823207855225 seconds
s.behavior.switch_1
array([2400.])
a = s.analyze(2400, window=(10,10))
13:50:18 --- Normalizing recording 2 with method 'F'
13:50:18 --- Normalizing recording 2 with method 'raw'

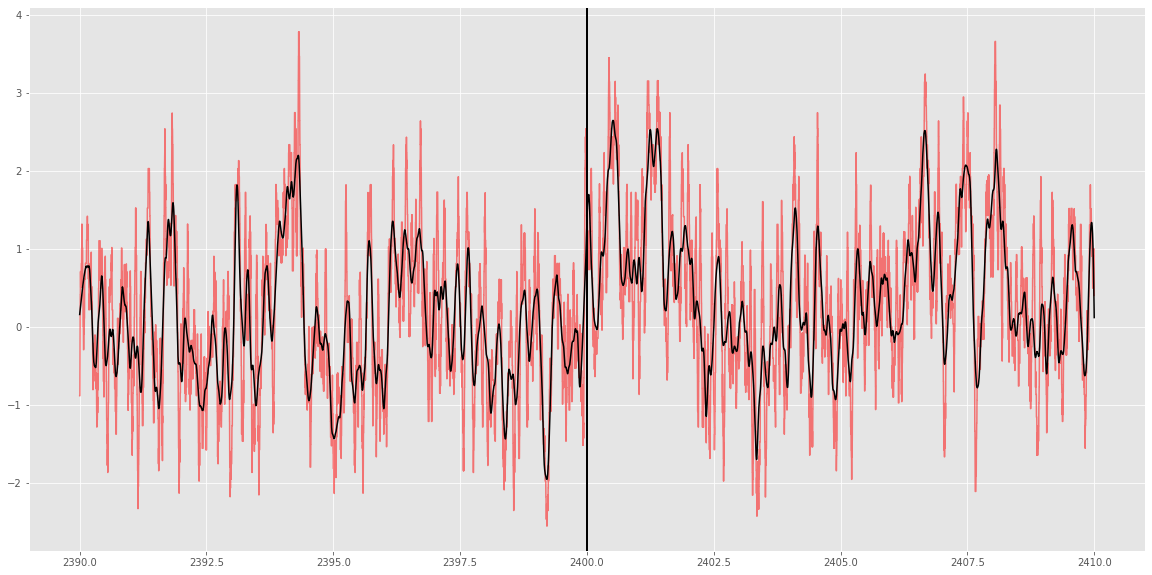

a.plot('zscores')
ms = pf.MultiSession('../DATA/FIBER_SAMPLE/',verbosity=False)
folder ../DATA/FIBER_SAMPLE/
ma = ms.analyze('switch_1', window=(10,10))
ma.info
<obj>.EPOCH
<obj>.RAW_CONTROL
<obj>.RAW_SIGNAL
<obj>.ROB_ZSCORES
<obj>.SIGNAL
<obj>.TIME
<obj>.WINDOW
<obj>.ZSCORES
<obj>.behaviorfile
<obj>.data
<obj>.dict
<obj>.epoch
<obj>.event_name
<obj>.event_time
<obj>.exclude_list
<obj>.fiberfile
<obj>.interpolated_epoch
<obj>.interpolated_raw_control
<obj>.interpolated_raw_signal
<obj>.interpolated_rob_zscores
<obj>.interpolated_signal
<obj>.interpolated_time
<obj>.interpolated_zscores
<obj>.key
<obj>.nb_of_points
<obj>.normalisation
<obj>.postAUC
<obj>.postAVG_RZ
<obj>.postAVG_Z
<obj>.postAVG_dF
<obj>.postRZ_AUC
<obj>.postZ_AUC
<obj>.post_Rzscores
<obj>.post_peak_avg_Z
<obj>.post_peak_avg_dFF
<obj>.post_peak_frequency
<obj>.post_peak_max_Z
<obj>.post_peak_max_dFF
<obj>.post_raw_AUC
<obj>.post_raw_ctrl
<obj>.post_raw_sig
<obj>.post_time
<obj>.post_zscores
<obj>.postevent
<obj>.preAUC
<obj>.preAVG_RZ
<obj>.preAVG_Z
<obj>.preAVG_dF
<obj>.preRZ_AUC
<obj>.preZ_AUC
<obj>.pre_Rzscores
<obj>.pre_peak_avg_Z
<obj>.pre_peak_avg_dFF
<obj>.pre_peak_frequency
<obj>.pre_peak_max_Z
<obj>.pre_peak_max_dFF
<obj>.pre_raw_AUC
<obj>.pre_raw_sig
<obj>.pre_time
<obj>.pre_zscores
<obj>.preevent
<obj>.raw_control
<obj>.raw_signal
<obj>.rawdata
<obj>.rec_number
<obj>.recordingdata
<obj>.rob_zscores
<obj>.sampling_rate
<obj>.signal
<obj>.time
<obj>.window
<obj>.zscores
ma.data
| behaviorfile | event_time | fiberfile | normalisation | postAUC | postAVG_RZ | postAVG_Z | postAVG_dF | postRZ_AUC | postZ_AUC | ... | preZ_AUC | pre_peak_avg_Z | pre_peak_avg_dFF | pre_peak_frequency | pre_peak_max_Z | pre_peak_max_dFF | pre_raw_AUC | rec_number | sampling_rate | window | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AD21R_rat_2_SA_j42 | ../DATA/FIBER_SAMPLE/AD21R_rat_2_SA_j42\bsa110... | 2400.000 | ../DATA/FIBER_SAMPLE/AD21R_rat_2_SA_j42\rat2sa... | F | 0.025722 | -0.065773 | -0.034664 | 0.002570 | -0.654216 | -0.344290 | ... | 0.001370 | 2.058082 | 0.021692 | 2.2 | 3.038234 | 0.032021 | 1.554369 | 2 | 1212.488800 | (10, 10) |
| AK20R_rat_3_SA_j17 | ../DATA/FIBER_SAMPLE/AK20R_rat_3_SA_j17\bsa191... | 2400.002 | ../DATA/FIBER_SAMPLE/AK20R_rat_3_SA_j17\rat 3 ... | F | 0.012637 | 0.577501 | 0.292794 | 0.001264 | 5.773983 | 2.927327 | ... | -0.005234 | 1.768366 | 0.013148 | 2.4 | 2.973392 | 0.022109 | 2.764812 | 3 | 1212.474856 | (10, 10) |
| AL21R_rat_3_NCIBSL_j37 | ../DATA/FIBER_SAMPLE/AL21R_rat_3_NCIBSL_j37\bs... | 2400.000 | ../DATA/FIBER_SAMPLE/AL21R_rat_3_NCIBSL_j37\AL... | F | 0.066639 | 0.792337 | 0.501397 | 0.006664 | 7.923244 | 5.013869 | ... | -0.000060 | 2.325809 | 0.018943 | 1.4 | 2.861402 | 0.023305 | 1.571765 | 1 | 1212.489754 | (10, 10) |
| AS21R_rat_10_SA1_j22 | ../DATA/FIBER_SAMPLE/AS21R_rat_10_SA1_j22\bsa0... | 2400.001 | ../DATA/FIBER_SAMPLE/AS21R_rat_10_SA1_j22\AS21... | F | -0.008051 | 0.451519 | 0.298840 | -0.000808 | 4.520103 | 2.991751 | ... | 0.000279 | 1.560379 | 0.018063 | 1.9 | 2.544587 | 0.029455 | 1.641309 | 2 | 1212.474249 | (10, 10) |
| AS21R_rat_11_SA5_j33 | ../DATA/FIBER_SAMPLE/AS21R_rat_11_SA5_j33\bsa1... | 2400.007 | ../DATA/FIBER_SAMPLE/AS21R_rat_11_SA5_j33\AS21... | F | 0.010470 | 0.039655 | 0.039895 | 0.001047 | 0.397453 | 0.399561 | ... | 0.001592 | 2.241051 | 0.016517 | 2.1 | 3.017688 | 0.022241 | 1.731620 | 2 | 1212.490012 | (10, 10) |
| AS21R_rat_5_SA6_j37 | ../DATA/FIBER_SAMPLE/AS21R_rat_5_SA6_j37\bsa23... | 2400.000 | ../DATA/FIBER_SAMPLE/AS21R_rat_5_SA6_j37\AS21R... | F | 0.041647 | 1.105359 | 0.777822 | 0.004164 | 11.054853 | 7.779106 | ... | 0.000589 | 1.549028 | 0.015241 | 1.7 | 2.124176 | 0.020900 | 1.538536 | 2 | 1212.490300 | (10, 10) |
| AS21R_rat_8_SA3_j27 | ../DATA/FIBER_SAMPLE/AS21R_rat_8_SA3_j27\bsa09... | 2400.005 | ../DATA/FIBER_SAMPLE/AS21R_rat_8_SA3_j27\AS21R... | F | 0.047898 | -0.177228 | -0.096186 | 0.004790 | -1.772036 | -0.961661 | ... | 0.001397 | 1.987483 | 0.020698 | 2.5 | 2.634553 | 0.027436 | 1.438889 | 2 | 1212.489088 | (10, 10) |
7 rows × 31 columns

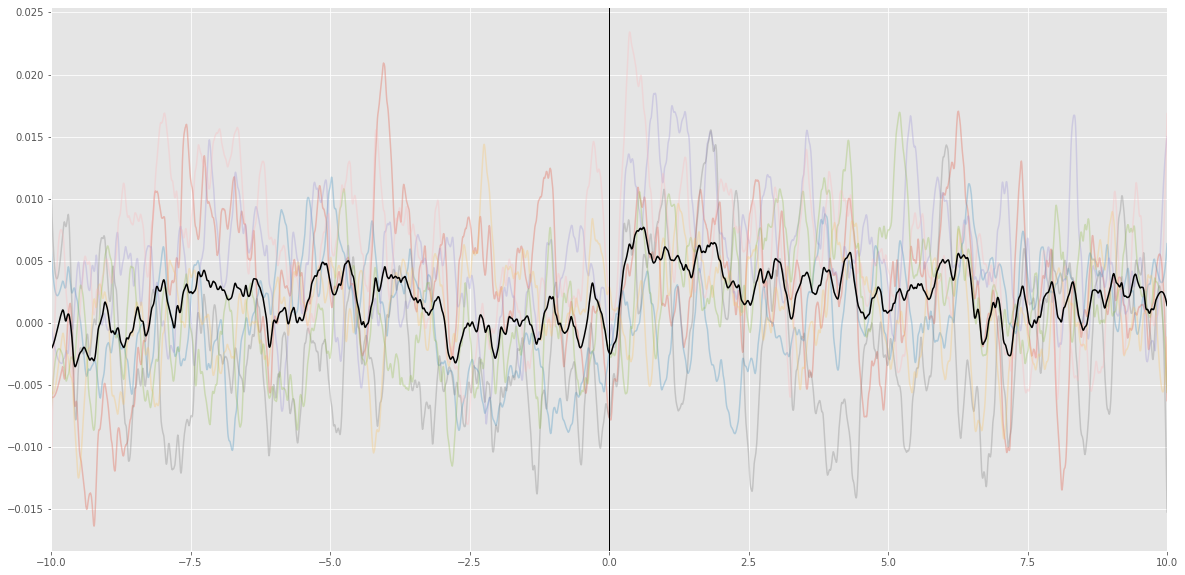

ma.plot('signal')
